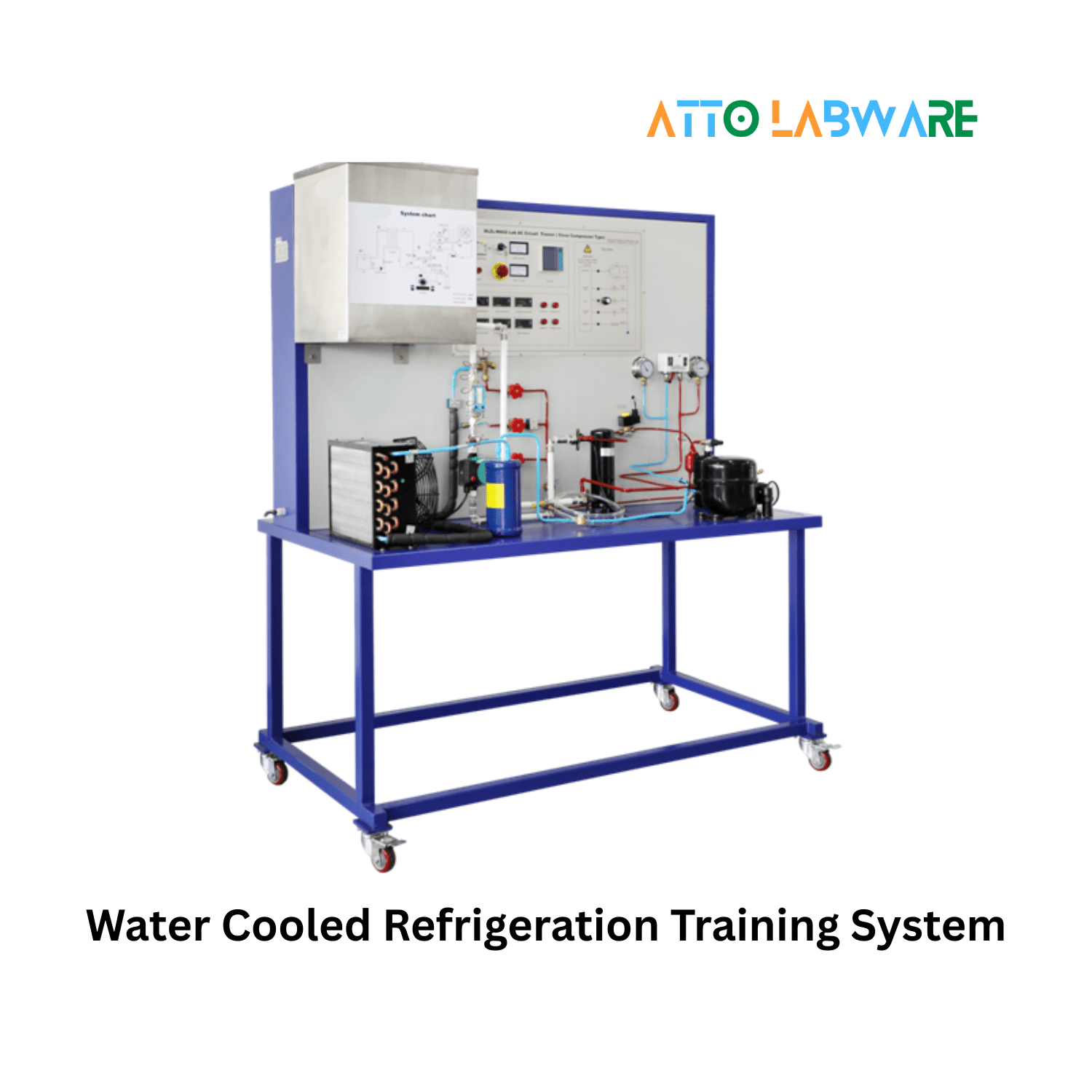

Water Cooled Refrigeration Training System
✅ Description
The Water Cooled Refrigeration Training System by Atto Labware is a complete educational platform designed to teach the operational principles of the water-cooled vapour-compression refrigeration cycle using industrial-grade components.
Students gain practical experience in refrigeration operation, instrumentation, water-cooling heat transfer, performance evaluation, maintenance, and troubleshooting.
All components are mounted securely on a mobile aluminum-steel structure providing full visibility and safe hands-on learning.
✅ Performance Measurement
-
Demonstration of complete vapour compression refrigeration cycle
-
Measurement of cooling capacity, input power, and system efficiency
-
Condenser water flow rate monitoring and its effect on performance
-
Observation of evaporation, compression, condensation, expansion processes
-
COP calculation under different refrigerant and water flow conditions
-
Pressure-temperature analysis on high and low-pressure sides
-
Fault diagnosis and system operation control experiments
✅ Panel & Instruments
-
Digital voltmeter and ammeter
-
High-side and low-side pressure gauges
-
Temperature sensors at key system points
-
Start/stop push button and power safety protection
-
Sight glass for refrigerant state observation
-
Control panel with operational indicator lamps
-
Safety insulating 4mm test terminal connectors
✅ Technical Specifications
| Component / Section | Specification |
|---|---|
| Refrigerant | R134a / R22 (depending on order) |
| Compressor | Hermetic type, 1-phase, approx. 250–350 W cooling capacity |
| Condenser | Water-cooled shell-and-tube or coil type with flow control |
| Evaporator | Finned tube or plate-type evaporator |
| Throttle Device | Capillary tube / Expansion valve |
| Cooling Water Loop | Water pump, flow meter, inlet/outlet control valves |
| Instrumentation | High & low pressure gauges, digital temperature indicators |
| Power Supply | 1-phase 220-240 V, 50 Hz with leakage protection |
| Frame Construction | Powder-coated steel / aluminum profile, lockable casters |
| Accessories | Utility hoses, wiring cables, standard refrigeration fittings |
| Dimensions | Approx. 1200 × 700 × 1500 mm (Customizable) |
✅ Optional
-
Data Acquisition (DAQ) System for:
-
Digital real-time recording of pressure, temperature, voltage, current
-
Performance graph plotting and export to PC software
-
Advanced experiment reporting and analysis
-
✅ Manufacturing Customization
✅ Atto Labware can manufacture this system with customized specifications as per customer requirements, including capacity upgrades, modified control panels, different refrigerants, and custom training modules.
