Refrigeration training system
The Refrigeration System is a premium, fully operational, bench-mounted educational trainer designed for vocational and technical instruction in refrigeration, air-conditioning (HVAC), and electrical control circuits. The system accurately replicates the structural and functional characteristics of a commercial direct-expansion refrigeration unit, allowing students to map cycles, analyze thermodynamic performance, and simulate real-world troubleshooting scenarios.
To enhance classroom management and safety, the system features an integrated, industrial-grade RFID Power Management System, allowing instructors to control equipment activation, track usage, and monitor laboratory assets over a standard network line.
Key Features & Learning Capabilities
-
Comprehensive Hands-on Practice: Supports system commissioning, evacuation, refrigerant charging, performance measurement, and active fault diagnosis.
-
Thermodynamic Analysis: Enables accurate collection of localized pressure and temperature parameters to plot refrigeration cycles on a Mollier Diagram.
-
Visualized Operation: Three (3) transparent observation sight glasses are placed strategically on fluid lines to witness refrigerant phase transformations in real time.
-

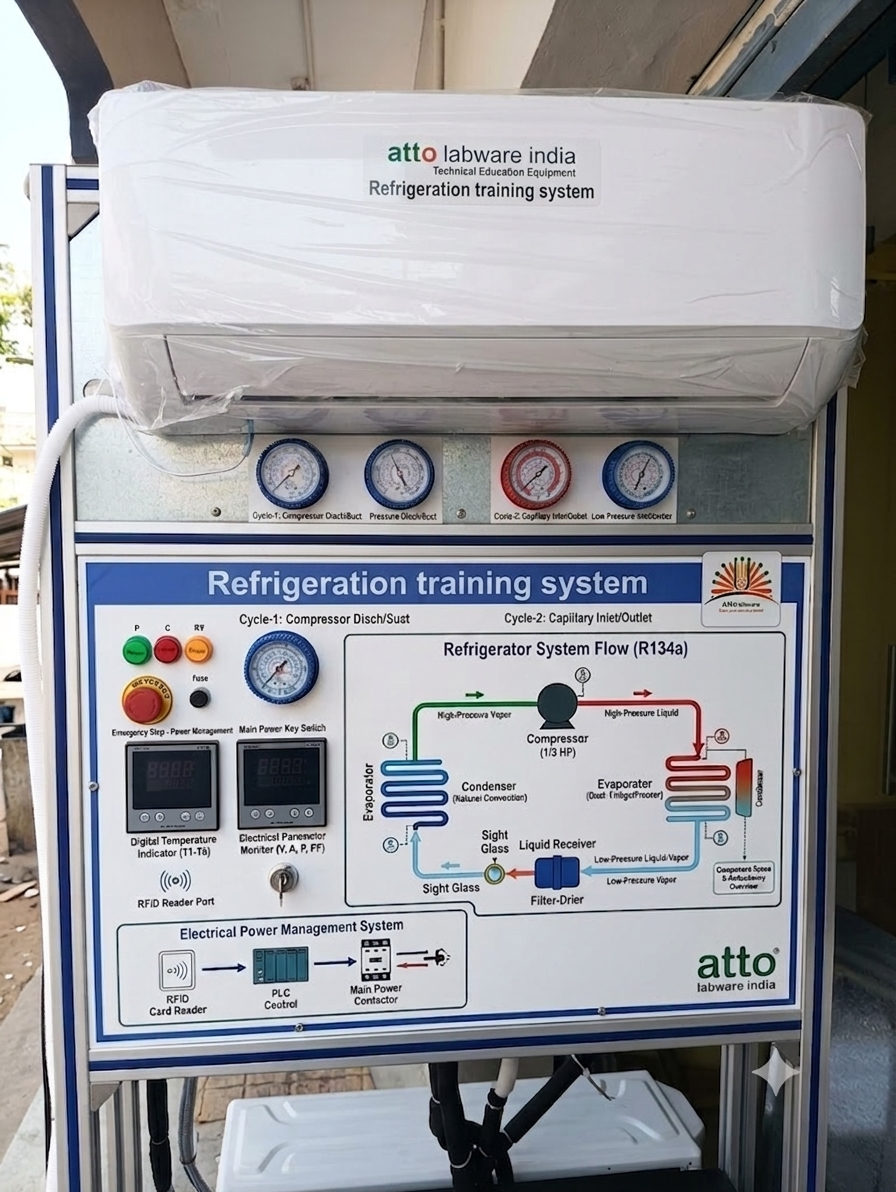

Interactive Control Panel: Engineered with a high-visibility, screen-printed refrigeration schematic and color-coded piping lines (Red for High Pressure / Blue for Low Pressure).
-
Smart Access Control: Built-in industrial 13.56 MHz RFID console prevents unauthorized machine utilization and enables master management control.
