Water Cooled Refrigeration Training System

✅ Description

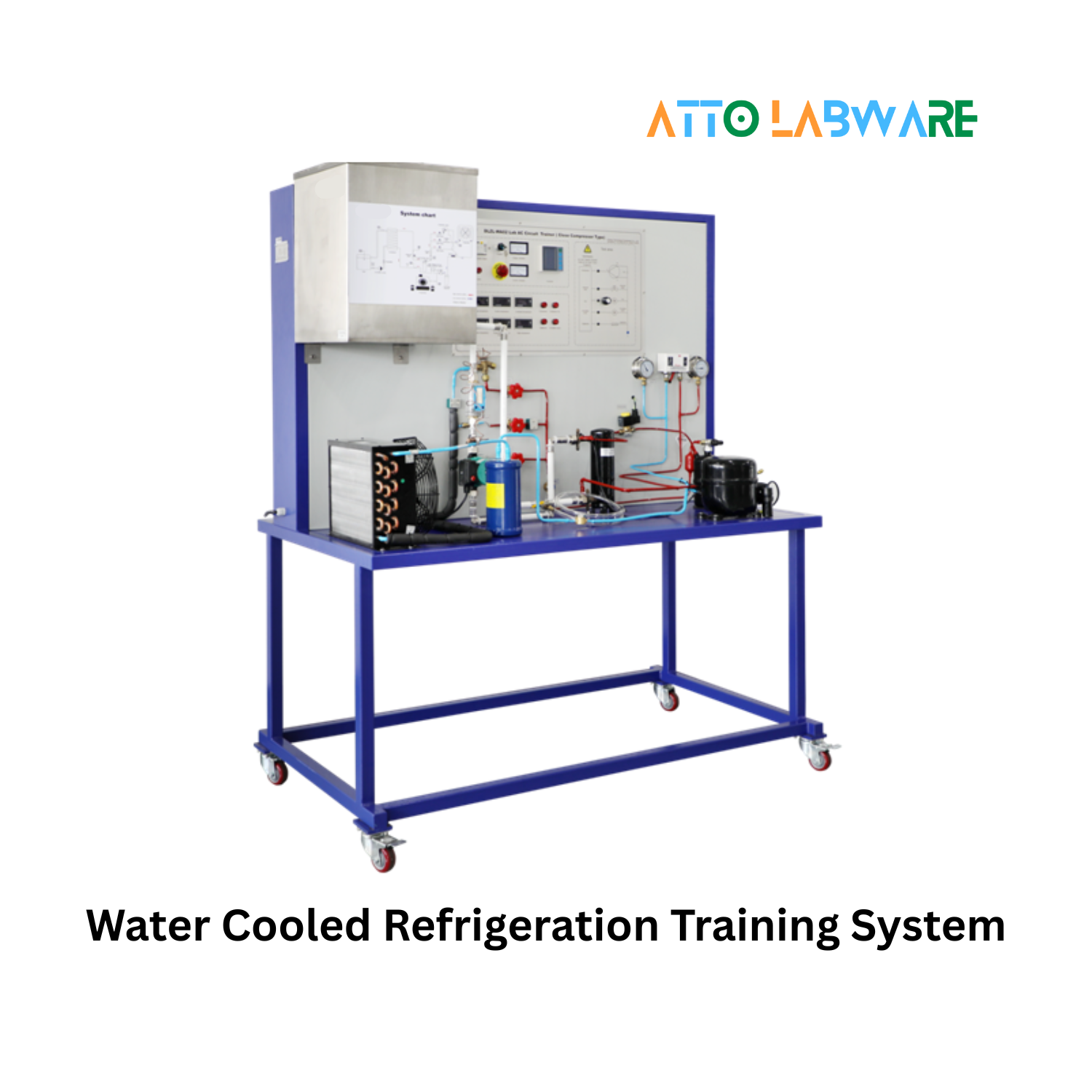

The Water Cooled Refrigeration Training System by Atto Labware is a complete educational platform designed to teach the operational principles of the water-cooled vapour-compression refrigeration cycle using industrial-grade components.
Students gain practical experience in refrigeration operation, instrumentation, water-cooling heat transfer, performance evaluation, maintenance, and troubleshooting.
All components are mounted securely on a mobile aluminum-steel structure providing full visibility and safe hands-on learning.

✅ Performance Measurement

• Demonstration of complete vapour compression refrigeration cycle

• Measurement of cooling capacity, input power, and system efficiency

• Condenser water flow rate monitoring and its effect on performance

• Observation of evaporation, compression, condensation, expansion processes

• COP calculation under different refrigerant and water flow conditions

• Pressure-temperature analysis on high and low-pressure sides

• Fault diagnosis and system operation control experiments

✅ Panel & Instruments

• Digital voltmeter and ammeter

• High-side and low-side pressure gauges

• Temperature sensors at key system points

• Start/stop push button and power safety protection

• Sight glass for refrigerant state observation

• Control panel with operational indicator lamps

• Safety insulating 4mm test terminal connectors

✅ Technical Specifications
