Split Air Conditioner Training System
✅ Description

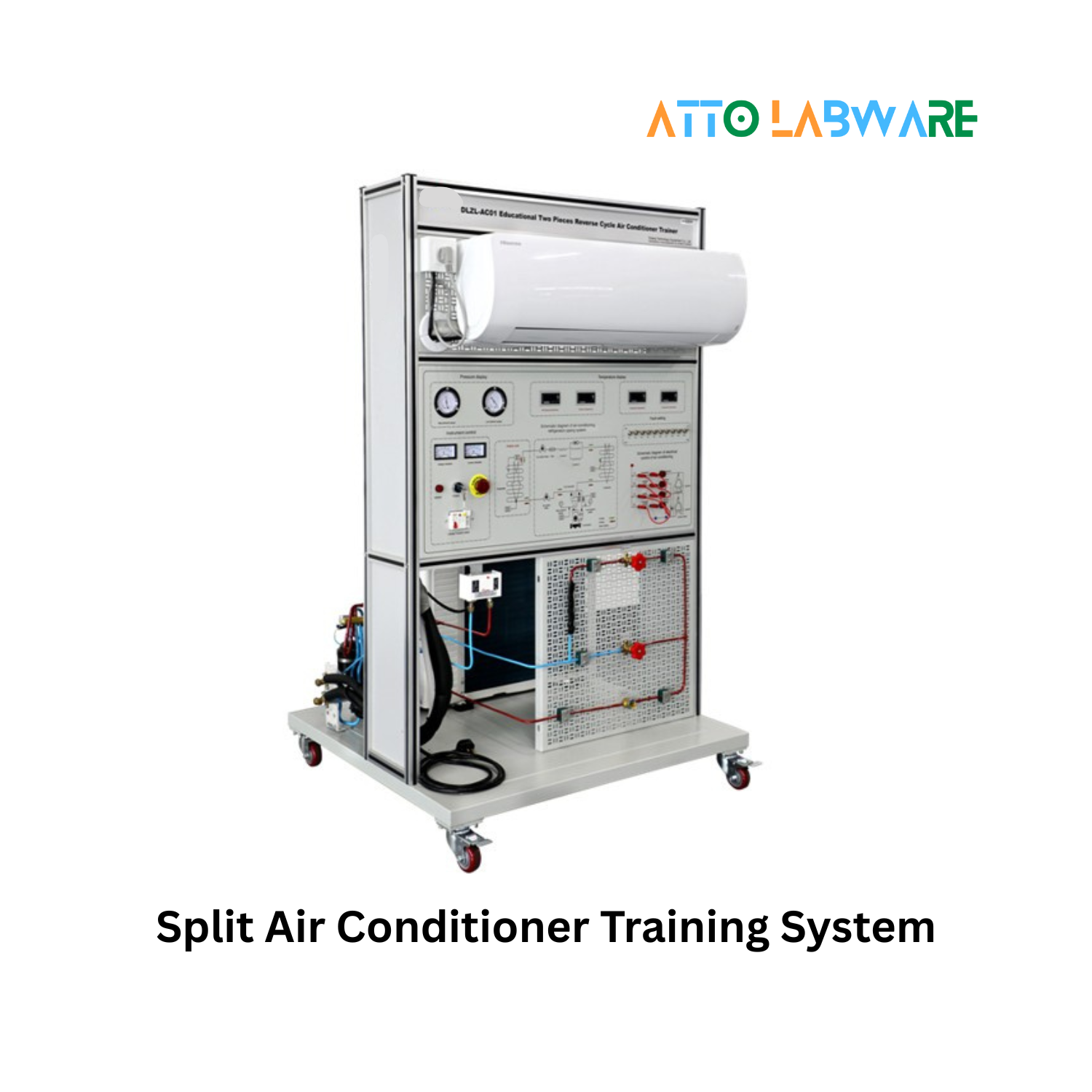

The Split Air Conditioner Training System from Atto Labware provides hands-on learning of split-type air conditioning technology used in residential and commercial buildings.
Students can observe real system operation with safe measurement points and practice troubleshooting of common AC faults.
✅ Performance Measurement
-
Study of vapor compression refrigeration cycle in AC systems
-
Measurement of high & low pressure variations under load
-
Evaluation of cooling capacity & Coefficient of Performance (COP)
-
Indoor & outdoor heat transfer performance analysis
-
Fault diagnosis in sensors, capacitors, and control circuits
✅ Panel & Instruments
-
Indoor evaporator unit with fan speed control
-
Outdoor condenser unit with compressor & fan
-
High & low pressure digital gauges
-
Temperature indicators at key test points
-
Control panel with safety protections:
-
MCB, overload relay, indicator lamps
-
-
Visible sight glass & service valves for refrigerant monitoring
-
4mm safety sockets for testing & power measurement
✅ Technical Specifications
| Component / Section | Specification |
|---|---|
| Refrigerant | R410A / R22 (as per requirement) |
| Cooling Capacity | 1–1.5 Ton (approx. 3.5–5.2 kW) |
| Compressor | Hermetic rotary, RLA approx. 3–6 A |
| Indoor Unit | Fan motor 220V, multi-speed, approx. 30–60 W |
| Outdoor Unit | Condenser fan with metal guard |
| Expansion Control | Electronic expansion valve or capillary |
| Sensors | Evaporator temperature sensor & ambient sensor |
| Power Supply | 220–240 V, 50 Hz, 1-phase |
| Frame | Aluminum profile frame with wheels |
| Dimensions | Customizable training frame format |
✅ Optional
-
Data Acquisition (DAQ) System
→ Digital monitoring & performance analysis software -
Fault Simulation Module
-
Reversible Heat Pump Mode
-
Transparent evaporator/condenser section
-
Environmental refrigerant options (R32 etc.)
✅ Manufacturing Customization
✅ Atto Labware will manufacture customized configurations based on customer’s technical specification or curriculum needs.
