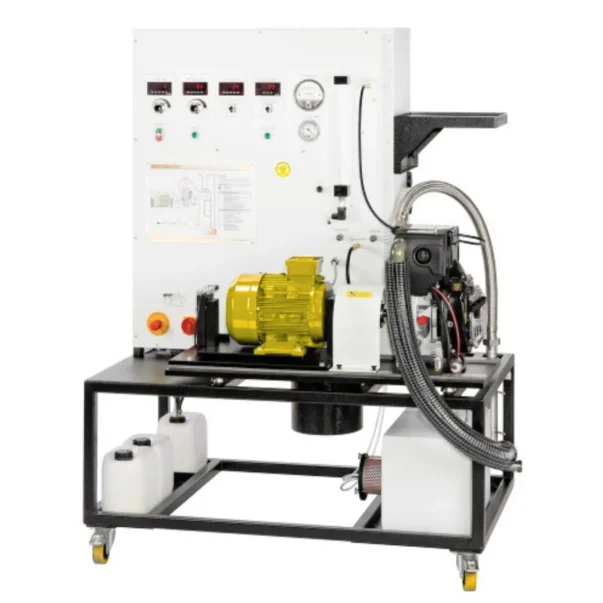

Single Cylinder Petrol Engine Test Rig

Single Cylinder Petrol Engine Test Rig

Single Cylinder Petrol Engine Test Rig

The Single Cylinder Petrol Engine Test Rig, manufactured by Atto Labware, is a complete training system designed for the study and performance evaluation of internal combustion engines. It allows students to conduct experiments on a single-cylinder, four-stroke petrol engine under various load conditions. The system is mounted on a robust mobile workstation with all necessary instrumentation for accurate measurement and analysis, making it ideal for technical institutes, universities, and automotive labs.

Category: Brand:
Guaranteed Safe Checkout
Add to quote

The Single Cylinder Petrol Engine Test Rig, manufactured by Atto Labware, is a complete training system designed for the study and performance evaluation of internal combustion engines. It allows students to conduct experiments on a single-cylinder, four-stroke petrol engine under various load conditions. The system is mounted on a robust mobile workstation with all necessary instrumentation for accurate measurement and analysis, making it ideal for technical institutes, universities, and automotive labs.

Educational Objectives

Students will be able to:

  1. Understand the construction and working principles of a four-stroke petrol engine.

  2. Measure engine performance parameters such as torque, speed, power, and efficiency.

  3. Conduct heat balance tests and determine fuel consumption.

  4. Analyze brake power, indicated power, and mechanical efficiency.

  5. Study the effects of load, speed, and air-fuel ratio on engine performance.

Performance Measurement

  • Measurement of torque and brake power using a dynamometer.

  • Recording of fuel consumption rate and air flow.

  • Calculation of thermal efficiency and specific fuel consumption (SFC).

  • Plotting performance curves such as brake power vs. fuel consumption.

  • Comparison of theoretical and experimental results.

Panel and Instruments / Components

  • Single-cylinder, 4-stroke petrol engine (air-cooled or water-cooled).

  • Eddy current or hydraulic dynamometer for loading.

  • Fuel measurement system with burette and stopwatch/digital flow meter.

  • Air intake measurement system with manometer/orifice.

  • Digital meters for RPM, torque, voltage, and current (if coupled with generator).

  • Temperature sensors (engine, exhaust, cooling water).

  • Control panel with protective devices and indicators.

  • Mobile workstation with safety covers.

Optional Software Package

The test rig can be supplied with dedicated software for:

  • Real-time monitoring of engine performance parameters.

  • Automatic data logging and report generation.

  • Plotting of performance curves directly on screen.

  • Analysis of heat balance and efficiency tests.

âš¡ Manufacturer: Atto Labware
Note: Customized specifications and software are available on request.
