Multi Head AC Training System

✅ Description

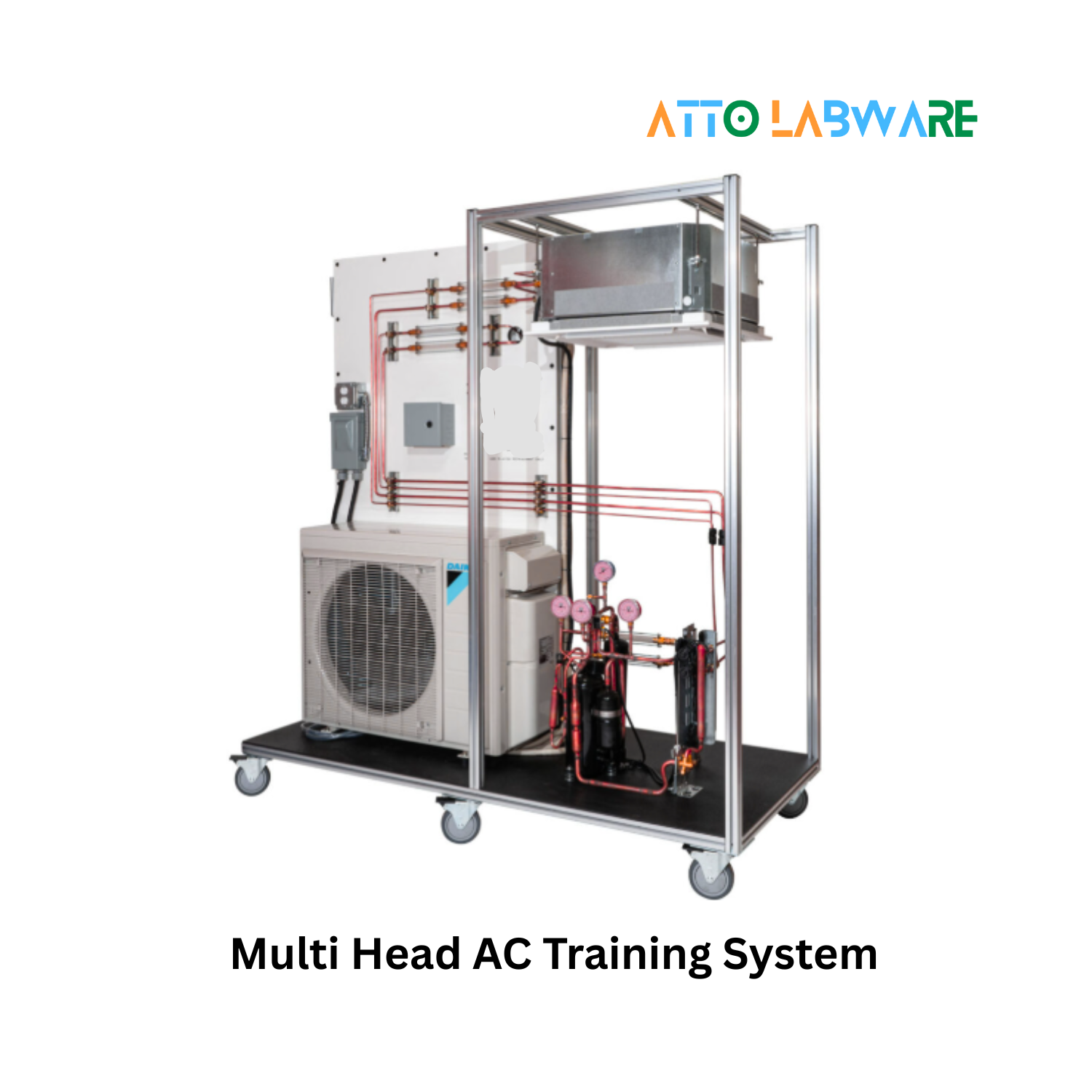

The Multi Head AC Training System from Atto Labware enables real-time learning of multi-zone air conditioning technology using multiple indoor units (wall-mounted split & cassette type) connected to a single outdoor unit.
It allows performance analysis under different load conditions, providing advanced HVAC skill development for commercial applications.

---

✅ Performance Measurement

• Study of multi-split air conditioning configuration

• Cooling performance analysis for each indoor unit

• High/low side pressure monitoring and comparison

• COP calculation & load distribution evaluation

• Fault simulation for control, sensor & refrigerant issues

• Indoor airflow and temperature drop measurement

---

✅ Panel & Instruments

• Wall-mounted split indoor unit

• Cassette type indoor unit (ceiling-mounted)

• Single outdoor unit with compressor & condenser

• Digital gauges for suction & discharge pressure

• Temperature sensors at evaporator, condenser & ambient points

• Control panel with:

  • MCB protection

  • Indicator lamps

  • Monitoring sockets for voltage & current

• Refrigerant sight glass & service valves for diagnostic tests

---

✅ Technical Specifications

---

✅ Optional

• Data Acquisition (DAQ) System with monitoring software

• Additional indoor unit (3-head or 4-head expansion option)

• Reversible heat pump mode (cooling + heating)

• Transparent duct section for airflow study

• Additional troubleshooting faults module

---

✅ Manufacturing Customization

✅ Atto Labware can fully customize capacity, number of indoor units, controls & refrigerant type based on customer requirements.
