The Horizon-60 PEM Fuel Cell Test System (60W), manufactured by Atto Labware and integrated with a Horizon 60W PEM fuel cell stack, is an advanced educational trainer for studying hydrogen fuel cell technology. It demonstrates hydrogen-to-electricity conversion, efficiency, and performance characteristics, making it ideal for renewable energy labs, technical institutes, universities, and R&D centers.
Educational Objectives
Students will be able to:
-
Understand the working principle of Proton Exchange Membrane (PEM) fuel cells.
-
Study the electrochemical conversion of hydrogen into electrical energy.
-
Analyze performance under varying load conditions.
-
Measure efficiency, polarization curves, and V-I characteristics.
-
Explore clean energy and sustainable power applications.
Performance Measurement
-
Demonstration of hydrogen-to-electricity conversion.
-
Measurement of voltage, current, power output, and load response.
-
Observation of efficiency under different load conditions.
-
Study of polarization curves and performance trends.
-
Validation of theoretical fuel cell concepts with experimental data.
Panel and Instruments / Components
-

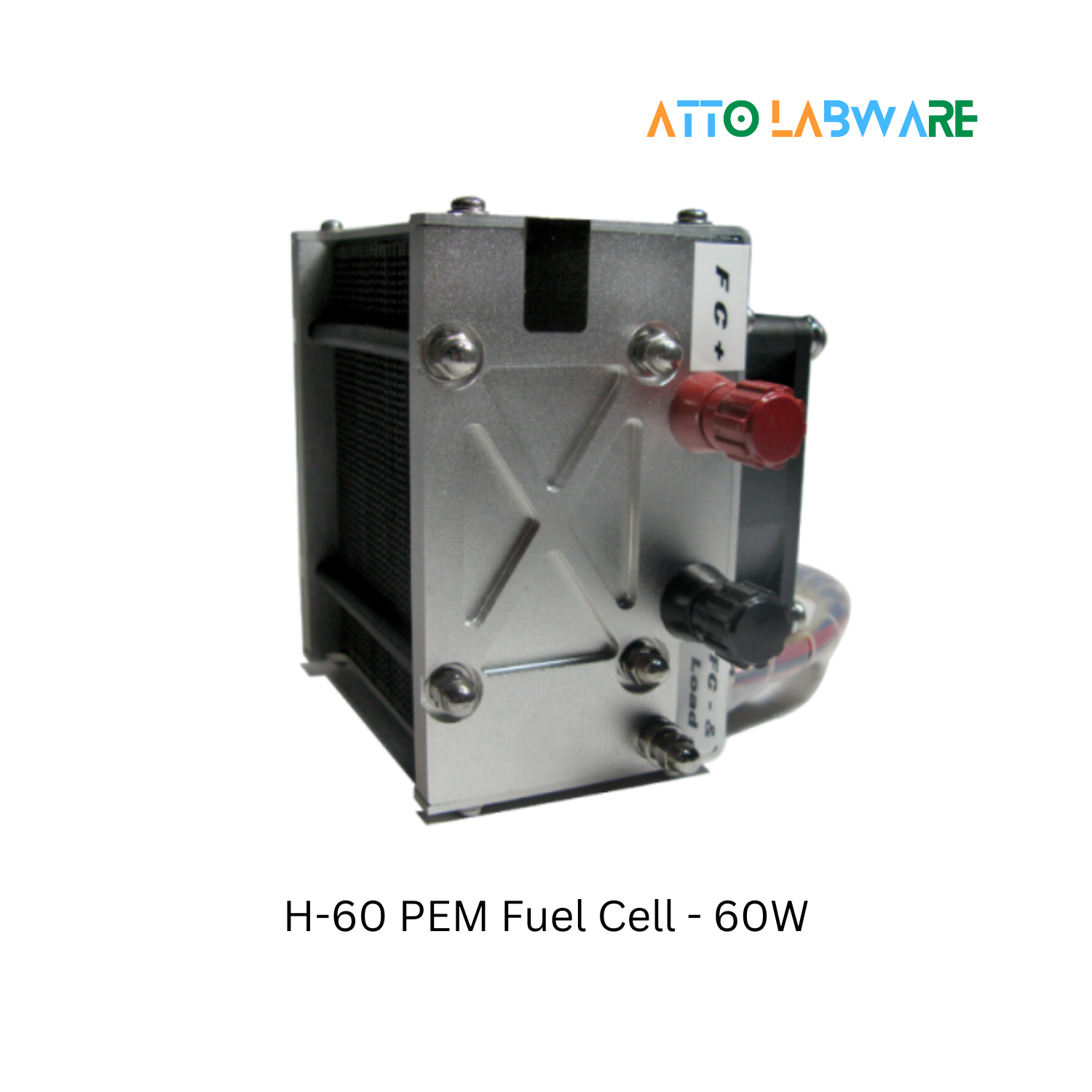

Horizon 60W PEM fuel cell stack integrated into the test system.
-
Control panel with monitoring instruments (voltage, current, power).
-
Hydrogen Generator: Provides a safe and continuous hydrogen supply for the fuel cell.
-
Digital Hydrogen Flow Controller: Regulates hydrogen flow precisely to control fuel cell operation.
-
Gas Leak Detector: Ensures safety by detecting any hydrogen leakage during experiments.
-
DC Load: Allows controlled electrical loading for performance testing and efficiency measurement.
-
Electrical terminals for external load connection.
-
Instructional manuals and experiment guides.
-
Portable, safe, and durable design for laboratory use.
⚡ Fuel Cell Stack: Horizon Fuel Cell Technologies
⚡ Test System Manufacturer: Atto Labware
Note: Customized specifications, accessories, panel accessories, and LabVIEW software are available on request.
