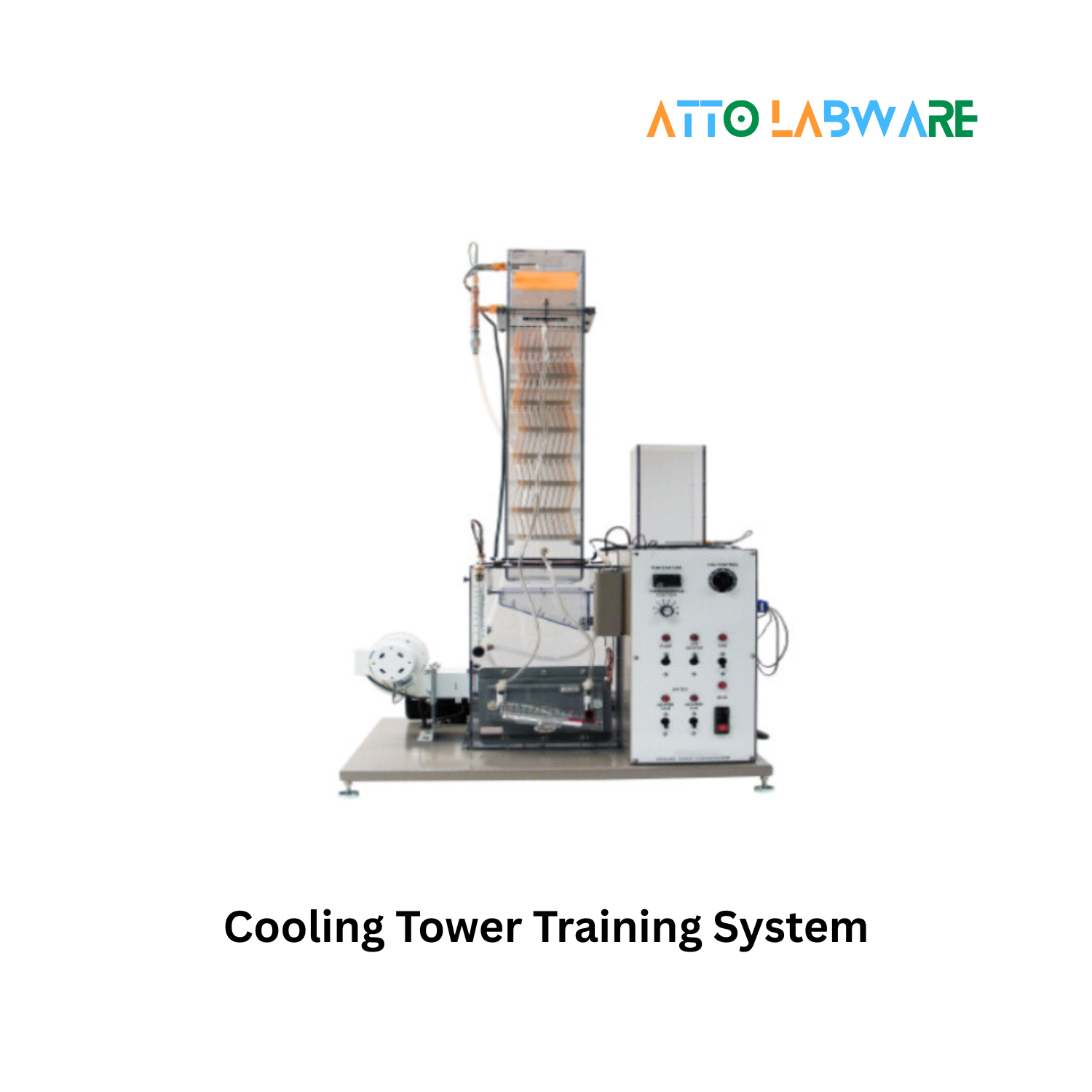

Cooling Tower Training System
✅ Description
The Cooling Tower Training System by Atto Labware is designed to demonstrate cooling tower principles used in industrial heat rejection systems.
Students learn water circulation, evaporation cooling, efficiency evaluation, fan operation, and the influence of environmental conditions on cooling performance.
✅ Performance Measurement
-
Observation of evaporative cooling process
-
Measurement of inlet & outlet water temperature
-
Airflow rate and water flow rate effect on performance
-
Cooling range, approach, & tower efficiency calculation
-
Pump and fan motor electrical parameter analysis
-
Study of water losses due to evaporation & drift
✅ Panel & Instruments
-
Digital temperature indicators (water in / water out / ambient)
-
Flow meter to measure circulating water flow
-
Pump control switches with safety protection
-
Fan speed control module & indicator lamps
-
Water level indicator in basin
-
Electrical consumption monitoring points
✅ Technical Specifications
| Component / Section | Specification |
|---|---|
| Cooling Method | Forced draft evaporative cooling |
| Water Tank Capacity | Approx. 20–40 liters |
| Circulation Pump | 220–240 V, 50 Hz, ~50–100 W |
| Fan Motor | Axial fan, ~40–100 W, speed adjustable |
| Heat Load Source | Electric heater for load simulation |
| Frame | Aluminum profile structure with wheels |
| Sensors | Temperature, flow monitoring |
| Power Supply | 220–240 V, 50 Hz, Single-phase |
| Construction | SS water tank & corrosion-resistant internal parts |
✅ Optional
-
Data Acquisition (DAQ) System for digital logging
-
Additional fault simulation controls
-
Water treatment demonstration kit
-
Humidity & wet bulb temperature sensors
-
Larger capacity industrial model
✅ Manufacturing Customization
✅ Atto Labware can manufacture customized cooling tower designs as per user curriculum or industrial specification.
