300W Vertical Axis Wind Turbine Test Bench

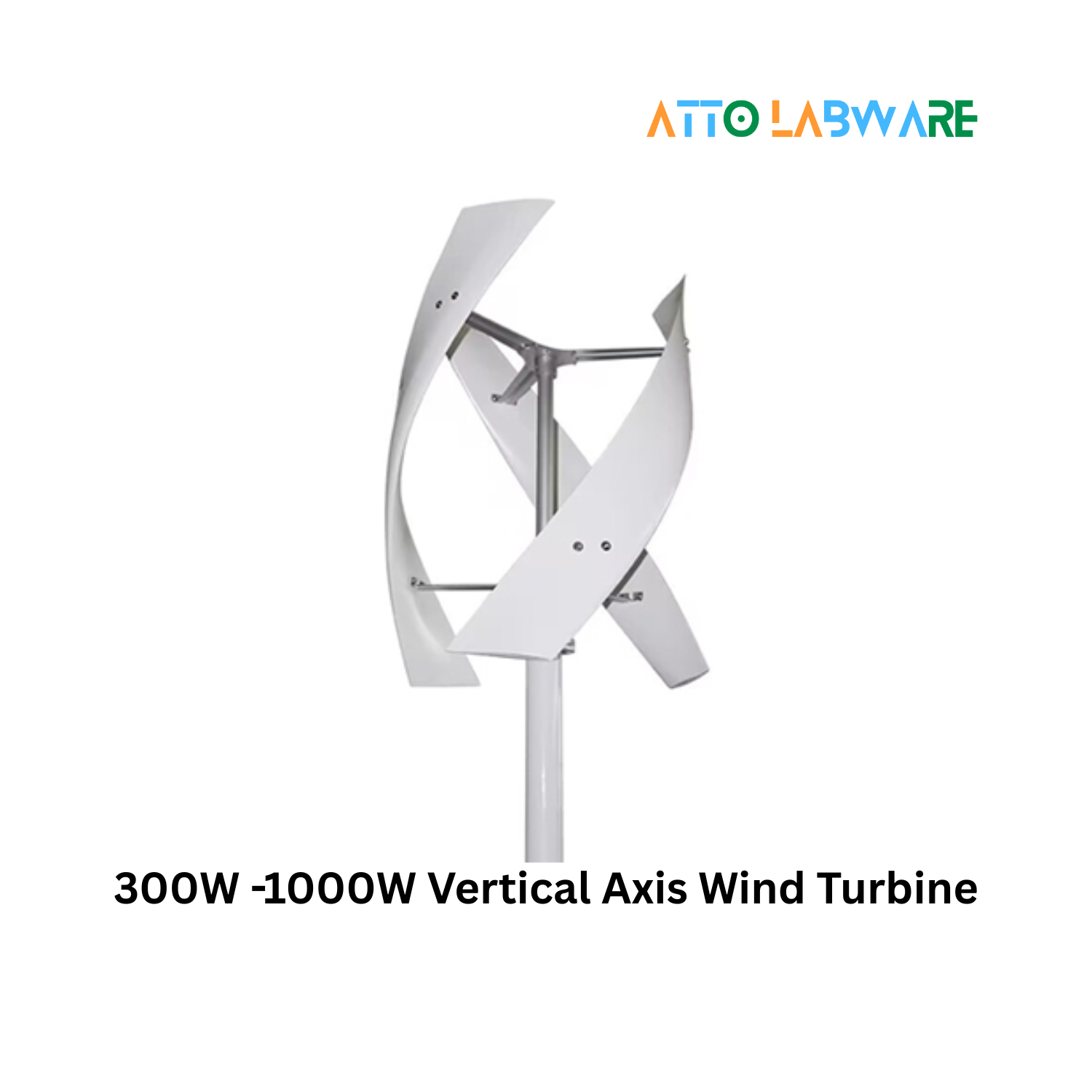

The 300W Vertical Axis Wind Turbine Test Bench, developed and supplied by Atto Labware India, is a high-capacity educational and research trainer designed for renewable energy laboratories, universities, and R&D centers. With a low start-up wind speed of 2 m/s and 360° omnidirectional wind capture, it effectively demonstrates wind-to-electricity conversion. Equipped with a three-phase permanent magnet generator, electromagnetic brakes, and an integrated control system, this turbine enables detailed performance testing under varying wind and load conditions, making it ideal for hands-on learning and experimental setups.

---

Educational Objectives

• Demonstrate principles of vertical axis wind energy conversion and turbine operation.

• Study the effect of wind speed on turbine power output and efficiency.

• Analyze generator characteristics, electromagnetic braking, and voltage regulation.

• Explore integration with DC/AC loads, charge controllers, and hybrid systems.

• Conduct hands-on experiments on turbine performance, speed regulation, and lab safety.

---

Performance Measurement

• Measurement of output voltage and current at different wind speeds.

• Evaluation of start-up, rated, and survival wind speed performance.

• Analysis of power generation efficiency and turbine performance curves.

• Observation of electromagnetic brake operation and 360° automatic windward adjustment.

• Optional software for data logging and advanced performance monitoring.

---

Panel & Instruments / Components

• Vertical Axis Wind Turbine Unit (3 Nylon Blades, Aluminum Alloy Body)

• Test Bench / Mounting Stand

• Axial Fan (for controlled wind simulation)

• VFD (Variable Frequency Drive) (to regulate axial fan speed)

• Charge Controller (DC regulation and system protection)

• Volt Meter (real-time voltage monitoring)

• Ammeter (current measurement)

• DC / AC Load Bank (performance testing under different loads)

• Output Terminals & Cabling Panel

• Safety Guard / Protective Enclosure

• Mounting Flange (DN20)

---

⚙ Specifications

---

Optional Features & Customization

• Optional software package for data logging, performance monitoring, and analysis.

• Customized specifications and instrumentation available on request.

• PC interface or SCADA integration for advanced research applications.
