The 100W Horizontal Axis Wind Turbine Test Bench, developed and supplied by Atto Labware India, is a compact and efficient educational trainer designed to study the principles of wind energy conversion using a horizontal axis configuration. With a low start-up wind speed of 2.0 m/s and high-performance aerodynamic blades, this system demonstrates the generation of electrical power from wind under controlled laboratory conditions. The test bench is equipped with a three-phase permanent magnet AC generator, electromagnetic controller, and safety features for accurate measurement and safe operation — ideal for renewable energy labs, universities, and research institutes.

Category: Brand:
Guaranteed Safe Checkout
Add to quote

100W Horizontal Axis Wind Turbine Test Bench

The 100W Horizontal Axis Wind Turbine Test Bench, developed and supplied by Atto Labware India, is a compact and efficient educational trainer designed to study the principles of wind energy conversion using a horizontal axis configuration. With a low start-up wind speed of 2.0 m/s and high-performance aerodynamic blades, this system demonstrates the generation of electrical power from wind under controlled laboratory conditions. The test bench is equipped with a three-phase permanent magnet AC generator, electromagnetic controller, and safety features for accurate measurement and safe operation — ideal for renewable energy labs, universities, and research institutes.

Educational Objectives

  • Demonstrate wind energy conversion using a horizontal axis wind turbine (HAWT).

  • Study the relationship between wind speed and generated electrical power.

  • Analyze generator characteristics, blade aerodynamics, and speed regulation.

  • Explore system efficiency under various wind and load conditions.

  • Conduct hands-on experiments on voltage, current, and power output measurement.

Performance Measurement

  • Measurement of output voltage and current under different wind speeds.

  • Evaluation of start-up, rated, and survival wind speed performance.

  • Determination of turbine efficiency and power curve plotting.

  • Observation of automatic windward adjustment and electromagnetic braking.

  • Optional software for real-time monitoring and data logging.

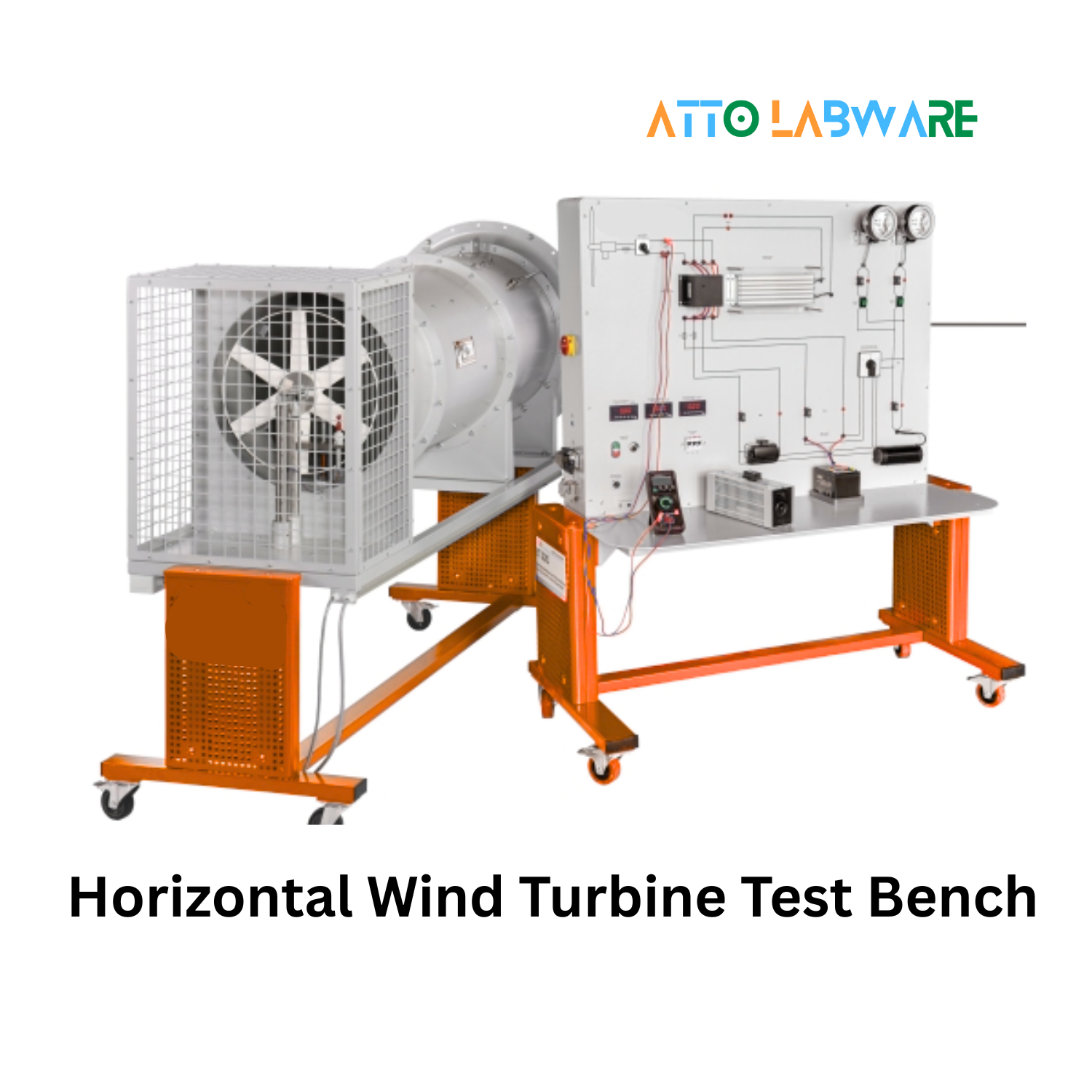

Panel & Instruments / Components

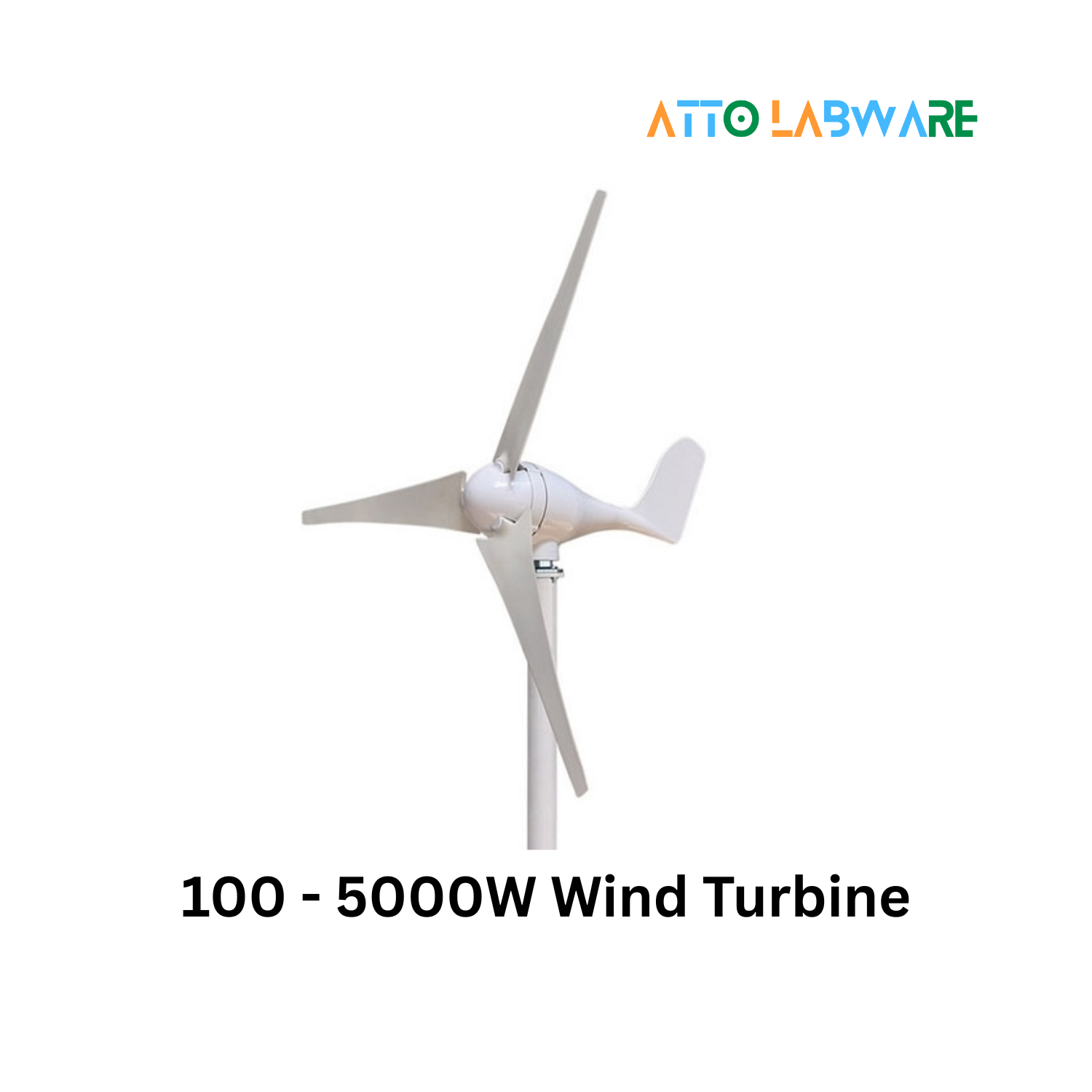

  • Horizontal Axis Wind Turbine Unit (3 or 5 Nylon Fiber Blades)

  • Test Bench / Mounting Stand

  • Axial Fan (for controlled wind simulation)

  • VFD (Variable Frequency Drive) (for fan speed regulation)

  • Charge Controller (DC regulation and safety)

  • Volt Meter (real-time voltage display)

  • Ammeter (current monitoring)

  • DC / AC Load Bank (performance testing under varying loads)

  • Output Terminals & Cabling Panel

  • Safety Guard / Protective Enclosure

  • Mounting Flange (DN20)

⚙ Specifications

Specification Value
Rated Power 100W
Maximum Power 120W
Rated Voltage 12V / 24V
Start Up Wind Speed 2.0 m/s
Rated Wind Speed 10.5 m/s
Survival Wind Speed 55 m/s
Wheel Diameter 1.15 m
Blade Number 3 / 5
Blade Material Nylon Fiber
Generator Three-Phase Permanent Magnet AC Generator
Magnetic Steel NdFeB
Generator Case Die-Cast Aluminum
Controller System Electromagnetic
Speed Regulation Automatically Adjust Windward
Installation Flange DN20
Working Temperature -40°C ~ +80°C
Gross Weight 10 kg
Top Net Weight 6 kg

Optional Features & Customization

  • Optional software package for data logging and performance analysis.

  • Customized blade configurations (3 or 5 blades).

  • Compatible with PC interface or SCADA integration for advanced monitoring.
